Overview:
Do-it-all performance

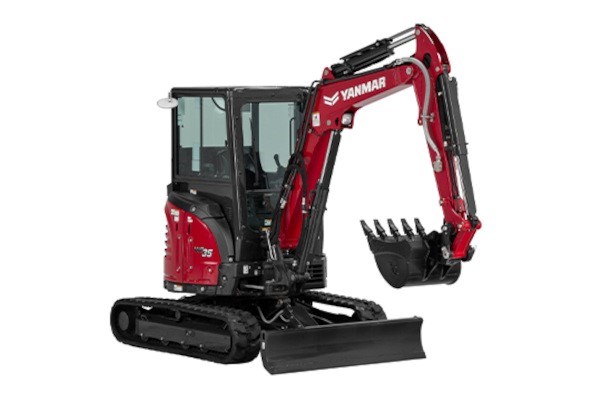

Step up to our 3.5-ton class mini excavator and you’ll find the perfect balance of power, capability, comfort, and efficiency to work all-day and increase your bottom line. With a true zero tail swing design ready to work in tight environments, you can add even more capability with available auto-shifting 2-speed travel to quickly move between work areas; blade float functionality for back blading and leveling; and 4-way blade control. And with Tier 4 Final power under the cowl, you’ll not only appreciate our legendary and incredibly quiet work-tough performance, but greater operational efficiency as well. With standard ECO mode and Auto Deceleration, you’ll enjoy up to 20% less fuel consumption than previous models.
Weight: 8,214 lbs
Horsepower: 24.4 HP
Max Dig Depth: 11’3″
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Service at your fingertips
The intelligent design of a Yanmar mini excavator is not only built to work harder, but to also make it easier and quicker to perform routine service. Virtually every major component including the engine, hydraulic system, starter, alternator, and battery are a simple access panel away.
| Engine | |
| Model | 3TNV88F-ESBV |
| Rated Output | 24.4 HP / 2,200 RPM |
| Type | Water-cooled 4-cycle diesel |
| Operating Weight | |
| Rubber Track (Canopy) | 7,905 lbs |
| Steel Track (Canopy) | 8,124 lbs |
| Rubber Track (Cabin) | 8,214 lbs |
| Steel Track (Cabin) | 8,434 lbs |
| Performance | |
| Max Digging Force, Bucket / Arm | 5,643 / 4,266 lbs. |
| Traveling Speed, High / Low | 2.7 / 1.7 MPH |
| Swing Speed | 9.5 RPM |
| Boom Swing Angle, (L / R) | 43 / 65 |
| Ground Contact Pressure (Rubber Track) | |
| Canopy | 4.80 PSI |
| Cabin | 4.97 PSI |
| Hydraulic System | |
| Pump Capacity | 9.8 GPM x 2 {Variable displacement pump} 6.9 GPM x 1, 2.9 GPM x 1 {Gear pump} |
| Main Relief Set Pressure | 3,205 x 2, 3,133 x 1 PSI |
| Blade Dimensions | |
| Width | 5'8" |
| Stroke, Raise / Lower from G.L. | 1′ 5″ / 1′ 3″ |
| Fuel Tank | |
| Capacity | 10.8 Gals |
