Overview:
Boost your bottom line

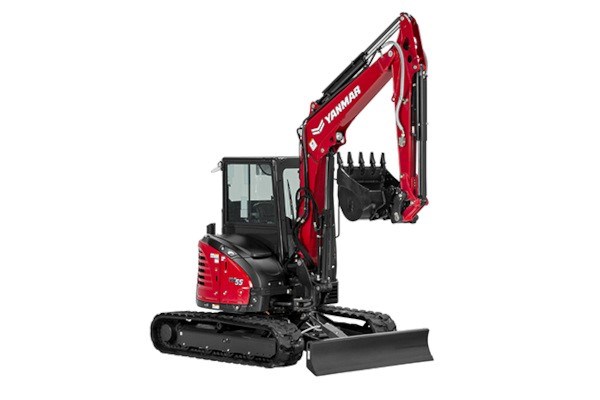

Looking for more performance, low cost of ownership and the versatility and small space capability of true zero tail swing? Look no further than the Vi055-6A. We’ve packed the most wanted features and Yanmar innovations into this 5.5-ton class mini excavator including standard auto-shifting two-speed travel to efficiently move between dig areas. Providing all the performance you need is a turbo-charged Tier 4 Final Yanmar diesel engine resulting in more than 47HP at your fingertips. You can then add more capability with the optional 4-way blade and floating function. Add it all up and you have an excavator that can tackle the toughest tasks in places where larger, heavier, and less maneuverable excavators simply can’t go. Plus, with our legendary Yanmar ease of maintenance and rugged dependability, you can rest assured you’ll be able to work harder and longer for less.
Weight: 12,247 lbs
Horsepower: 47.6 HP
Max Dig Depth: 13’6”
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Fits like a glove
The operator station of the Vi055-6A is designed for optimum intuitiveness and maximum comfort. The controls fall perfectly into place, the deep cushion seat provides all-day comfort, side bolsters keep you secure, and an informative LCD monitor makes it easy to keep tabs on engine and hydraulic details.
| Engine | |
| Model | YANMAR 4TNV86CT-PBV |
| Output | 47.6 HP |
| Type | Water-cooled 4-cylinder diesel |
| Operating Weight | |
| Rubber Track (Canopy) | 11,850 lbs |
| Steel Track (Canopy) | 11,916 lbs |
| Rubber Track (Cabin) | 12,247 lbs |
| Steel Track (Cabin) | 12,313 lbs |
| Performance | |
| Max Digging Force, Bucket / Arm | 7,464 / 5,058 lbs |
| Traveling Speed, High / Low | 2.6 / 1.4 MPH |
| Swing Speed | 10 RPM |
| Boom Swing Angle, (L / R) | 68° / 68° |
| Ground Contact Pressure | |
| Rubber Track (Canopy) | 4.17 PSI |
| Steel Track (Canopy) | 4.25 PSI |
| Rubber Track (Cabin) | 4.40 PSI |
| Steel Track (Cabin) | 4.47 PSI |
| Hydraulic System | |
| Pump Capacity | 12 + 12 + 9.7 + 2.8 GPM |
| Main Relief Set Pressure | 3,553 x 3 + 566 PSI |
| Blade Dimensions | |
| Width x Height | 6´6˝ x 1´4˝ |
| Fuel Tank | |
| Capacity | 17.4 Gals |
