Never met a challenge it couldn’t handle.

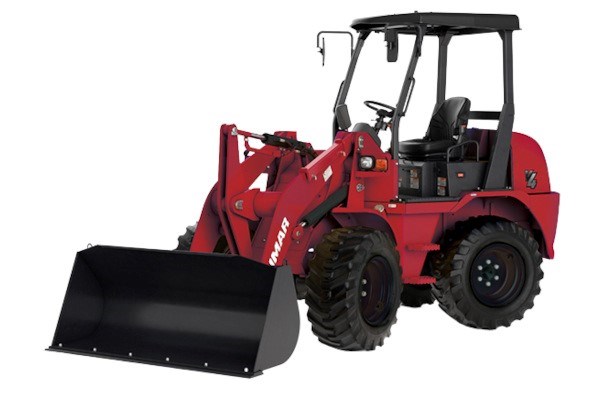

Our most compact articulating wheel loader might be small in size, but it’s big on capability. Whether you’re moving rocks, dirt, mulch, manure, salt, fertilizer, or any other material, our legendary Yanmar diesel performance makes quick work of any task. A fully automatic accelerator mode eliminates repetitive steps and rear axle oscillation allows you to cover uneven terrain with greater stability, resulting in less spill, even with a fully loaded bucket. Of course, the V4-7 allows for easy maintenance access, so you keep the load moving and your bottom line growing.
Weight: 8,422 lbs.
Horsepower: 39 HP
Bucket Capacity: 0.65 ydᵌ
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Smooth uneven terrain
Rear axle oscillation allows you to travel over uneven terrain without losing traction or excess material from your bucket. Additionally, you’ll enjoy a smoother ride when encountering bumps or ruts, resulting in less operator fatigue throughout the day.
| Model | V4-7 |
| ENGINE | |
| Model | 4TNV88C-NKAH |
| Output | 39 HP / 2,500 rpm |
| Displacement | 133.6 in³ |
| Type | Water-cooled 4-cylinder diesel |
| PERFORMANCE | |
| Standard Bucket Capacity | 0.65 yd³ |
| Operating Load | 2,535 |
| Lifting Capacity at Low End | 7,451 lbs |
| Tipping Load - Straight Tipping Load, Articulated | 6,070 lbs 5,058 lbs |
| Breakout Force | 6,085 lbs |
| Dumping Clearance | 7' 11" |
| Traveling Speed | 11.8 mph |
| Oscillation Angles | +8 deg |
| Minimum Turning Radius | 12'6" |
| Min. Ground Clearance | 1'3" |
| PTO | |
| Front Hyd. PTO | 3,000 PSI |
| Front Hyd. PTO | 14.8 GPM |
| Steering | |
| Type | Center-Pivot Frame Articulation w/Full Hyd. Power |
| Articulate Angle degrees | 40.5 deg |
| Transmission | |
| Type | Automatic Hydrostatic |
| Drives | |
| Type | 4-Wheel Drive |
| Brakes | |
| Type | Fully Enclosed, Mechanical, Wet, Multiple Disc |
| Operating Weight | |
| Canopy | 7,848 lbs |
| Cabin | 8,422 lbs |
| Transport Dimensions | |
| L x W x H | 14'6" x 5'7" 8'5" |
