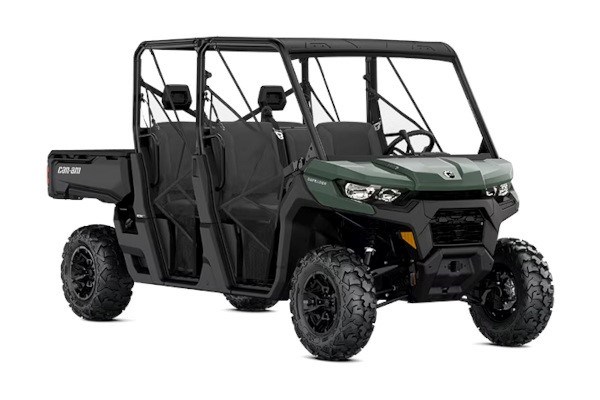

TAKE THE REIGNS. Comfortable Dynamic Power Steering turns the Defender MAX DPS into a workhorse that makes your job even easier. Take those lightweight wheels and tires, adaptable storage and get it done.
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
The HD7 Engine (52 hp / 42 lb-ft torque) is the king of the mid-cc class! The break-in period, early maintenance and frequent valve adjustments are all things of the past. The powerpack design delivers an improved riding experience, with less noise & vibration.
Sometimes you just have to rein in all the power of this workhorse for seeding, crop spraying or moving cargo. With the speed limiter available on all Defenders, you're the one in control. Get ready for peak work efficiency.
Here's the new waterproof sound system available in option. Six 7.7’’ speakers with Bluetooth compatibility, multi-colored LEDs, an RMC amp and a genuine JL audio receiver to crank up your playlists when you’re out there in the fields herding or baling to the beat of your own drum. Sounds good? You bet!
| Engine | HD9 HD7 HD10 |
|---|---|
| Engine displacement | 976 650 |
| Type | HD9: 65 hp / 59 lb-ft, Rotax® 976 cc, V-twin, liquid cooled HD7: 52 hp / 42 lb-ft, Rotax® ACE (Advanced Combustion Efficiency) 650 cc single cylinder, liquid cooled HD10: 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled |
| Transmission | HD9-HD10: PRO-TORQ CVT with Quick Response System (QRS), high airflow ventilation and Electronic Drive Belt Protection Extra-L / H / N / R / P HD7: pDrive primary CVT with engine braking and Electronic Drive Belt Protection L / H / N / R / P |
| Drive Train | HD9: Selectable Turf Mode / 2WD / 4WD with Visco-Lok† auto-locking front differential HD7: Selectable Turf Mode / 2WD / 4WD with Visco-Lok† QE auto-locking front differential HD10: Selectable Turf Mode / 2WD / 4WD auto-Locking front differential |
| Driving Assistance | CVT Engine Braking ECO™ / ECO™ Off / Work modes Speed Limiter |
| Front Suspension | Double A-arm / 10 in. (25.4 cm) suspension travel |
|---|---|
| Front Shocks | Twin tube gas charged shocks |
| Rear Suspension | TA with external sway bar / 10 in. (25.4 cm) suspension travel |
| Rear Shocks | Twin tube gas charged shocks |
| Suspension | Standard |
| Front Tires | HD7-HD9: XPS Trail Force 27 x 9/11 x 14 in. HD10: XPS Trail King 27 x 9/11 x 14 in. |
|---|---|
| Rear Tires | HD7-HD9: XPS Trail Force 27 x 9/11 x 14 in. HD10: XPS Trail King 27 x 9/11 x 14 in. |
| Wheels | 14 in. cast-aluminum |
| Front | Dual 220 mm disc brakes with hydraulic twin-piston calipers |
|---|---|
| Rear | Dual 220 mm disc brakes with hydraulic twin-piston calipers |
| Brakes | Standard |
| Front | Dual 220 mm disc brakes with hydraulic twin-piston calipers |
|---|---|
| Rear | Dual 220 mm disc brakes with hydraulic twin-piston calipers |
| Brakes | Standard |
| Gauge | 4.5 in. wide digital display |
|---|---|
| Winch | N/A |
| Protection | Integrated front steel bumper, Full heavy-duty HMW plastic skid plate |
