Overview:
Where wheels dare not tread

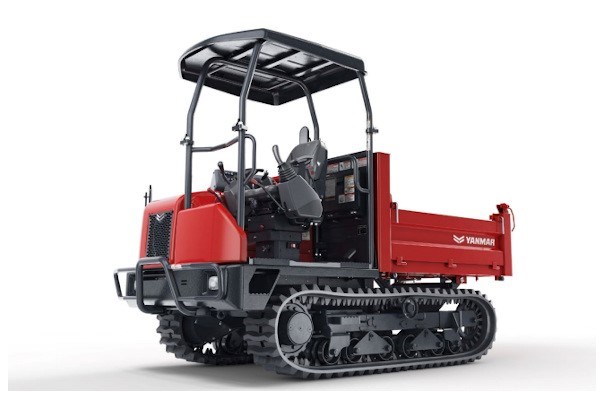

Don’t let bad weather or wet, muddy, snow covered, sandy or steep slopes slow down your next project or jobsite. When a pickup or dump truck can’t get the job done, rest assured our compact and powerful C30R-3 all-terrain tracked carrier can. With an all-rubber track, you’ll enjoy minimal impact, incredible traction, and amazing stability and capability, even traversing the most challenging terrain. Whether you’re looking to bring material in, excavated material out, or you simply need to transport tools across terrain where wheeled vehicles dare not tread, the C30R-3 all-terrain tracked carrier keeps things moving.
Weight: 5,843 lbs
Horsepower: 46 HP
Max Payload: 5,512 lbs
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Go anywhere, dump anywhere
When you add the versatility of our swivel dump bed you gain an amazing 85-degree dump angle and the versatility of a 180-degree swivel dump platform. Not only can you travel across soft terrain where others can’t, you’ll always discharge the load exactly where it needs to go.
| MODEL | C30R-3 |
| Operating Weight | |
| Net, unloaded – Box Shape | 5,843 lbs |
| Net, unloaded – V Shape | 6,317 lbs |
| Transmission | |
| Type | Variable Speed 2 Pump, 2 Motor Hydrostatic (HST) |
| Undercarriage | |
| Track Type | Steel-Reinforced Rubber Track |
| Track Width | 1' 1" |
| Min. Ground Clearance – Bow Shape | 10" |
| Min. Ground Clearance – V Shape | 11" |
| Ground Contact Pressure – Bow Shape w/o load | 4.0 PSI |
| Ground Contact Pressure – Bow Shape w/ load | 4.3 PSI |
| Ground Contact Pressure – V Shape w/o Load | 7.8 PSI |
| Ground Contact Pressure – V Shape w/load | 8.1 PSI |
| Performance | |
| Max. Payload - One-way Dump Type | 5,512 lbs |
| Max. Dumping Angle - One-way Dump Type | 58° |
| Max. Dumping Angle – Swivel-dump Type | 85° |
| Dump Clearance – One-way Dump Type | 1’6″ |
| Dump Clearance – Swivel-dump Type | 2’5″ |
| Dump Body Capacity Struck – One-way Dump Type | 1.15 yd³ |
| Dump Body Capacity Heaped – Swivel-dump Type | 1.47 yd³ |
| Dump Body Capacity Struck – One-way Dump Type | 1.62 yd³ |
| Dump Body Capacity Heaped – Swivel-dump Style | 1.96 yd³ |
| Travel Speed – Forward | Low Speed 0-3.5 mph / High Speed 0-6.8 mph |
| Travel Speed - Reverse | Low Speed 0-3.5 mph / High Speed 0-6.8 mph |
