Yanmar Construction TL100VS

Double tap to zoom

Compact Track Loaders

TL100VS

Overview:

Dream Bigger with a Compact Gamechanger

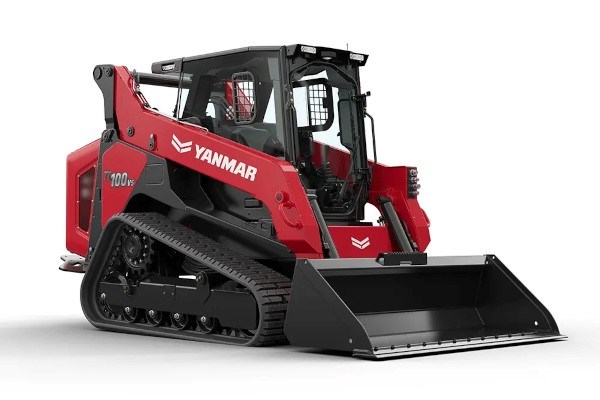

The all-new TL100VS is the heavy-duty leader in Yanmar’s debut lineup of compact track loaders. With a relentless 103.5HP engine, this machine does more than finish the job — it helps create new ones for your crew. Power through project after project for years to come with the latest innovation from a leader in compact equipment.

Weight: 10,555 lbs
Horsepower: 103.5 hp
ROC: 3,780 lbs

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Name*

Email*

Phone

Address

City*

State*

Zip

Have a trade in?

Make

Model

Year

Hours

Years Owned

Condition

Comments*

By submitting this form, you agree to be contacted via email, text message or phone call, and acknowledge and agree to our posted Terms and Privacy Policy.

Are you interested in learning more about STIHL equipment?

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Construction-Grade Reliability and Performance.
Yanmar’s new TL100VS is a construction-grade compact track loader featuring Yanmar’s renowned reliability, quality, and performance. The TL100VS is ideal for improved productivity in construction work, rental applications, landscaping job and more.

Do More – Sacrifice Less
Get more done with less material loss with optional material retention features. Operators can preset the attachment angle and loader arm position for convenience during repetitive tasks. Dual Direction Self Leveling and Automatic RideControl capabilities improve material retention. The TL100VS can be switched between high and low speed modes for efficient operation.
Convenience and Safety
Improve convenience and operator safety with a premium clear-sided cab, a 7” touch screen, and Yanmar SmartAssist Telematics. The system’s features range from error detection and work reports to integrated theft protection.
A Machine You Can Count On
Enjoy peace-of-mind with Yanmar’s 2-year/2,000-hour warranty and achieve maximum reliability and durability with the TL100VS’ heavy-duty suspended undercarriage. Featuring standard torsion axle suspension to smooth out the ride, the undercarriage improves operator comfort and material retention.

Specifications

Model	TL100VS
Operating Specifications
LOADER ARMS	Vertical
OPERATING WEIGHT (OPEN CAB)	10,555 lbs
OPERATING WEIGHT (CLOSED CAB)	10,835 lbs
GROUND PRESSURE AT OPERATING WEIGHT	4.4 psi
RATED OPERATING CAPACITY (35% of tipping load)	3,780 lbs
TIPPING LOAD	10,800 lbs
TRAVEL SPEED, MAXIMUM	8 mph
ENGINE
Type	Diesel 4-cylinder, Intercooled Turbo
Model	Yanmar 4TNV94FHT
GROSS POWER RATING	103.5 hp
DISPLACEMENT	3.1 L
TORQUE, PEAK	291 ft-lg
COOLING SYSTEM	Belt-driven fan and anti-freeze filled radiator cooling system
INTAKE AiR CLEANER	Three-stage
EMISSION CONTROLS	Meets all U.S. EPA Tier 4 final standards
UNDERCARRIAGE
TRACK WIDTH	17.7 in
LENGTH OF TRACK ON GROUND	67 in.
GROUND CONTACT AREA	2,372 in.2
DRIVE SYSTEM	Dual hydraulic drive motors
UNDERCARRIAGE SUSPENSION	Two independent torsion axles per undercarriage
AUXILIARY HYDRAULIC SYSTEM
PUMP CAPACITY, LOW/HIGH	23/ 41 gpm
MAX SYSTEM PRESSURE, LOW/HIGH	3,481 / 3,989 psi
CONTROLS	Intermittent via joystick button or continuous via console switch. High flow is adjustable.
COUPLERS	Flat Faced Couplers: 1/2 in. low flow, 3/4 in. high flow
COOLING SYSTEM	High efficiency side-by-side radiator and oil cooler
ELECTRICAL SYSTEM
NOMINAL CHARGE	12V
BATTERY	950 CCA
CHARGING SYSTEM	80 amp alternator
OUTLETS	1-12 V port inside operator station
WIRING	Upgradeable wiring harness
STANDARD FEATURES	Block heater
Service Capacity
FUEL TANK	34 gal
DEF CAPACITY	5 gal
OPERATOR STATION
CAB	ROPS or All-Weather Cab with curved glass door
SEAT	Mechanical suspension seat with 2-in. seat belt
CONTROLS	Electronic joystick controls with ISO or H pattern settings, adjustable operator profiles and speeds
ENGINE SPEED	Standard foot pedal with hand dial option
FOPS	ISO 3449 Level 1 (level 2 optional), emergency roof exit
ILLUMINATION	2- Forward-facing LED Lights 2-Rear-Facing LED Lights
STANDARD FEATURES	Mechanical suspension seat, fixed pilot controls, 7-in. color display, roof panel, rear window, cupholder, two speed, standard flow
OPTIONAL FEATURES	All Weather Cab, heat & A/C, adjustable pilot controls, foot throttle, phone holder, radio with Bluetooth and USB, roof insulation, high flow, 3 in. seat belt, air ride seat, rotating magnetic beacon, LED side lights, backup camera, Smart Assist remote telematics, Remote control kit, 1/2 in. polycarbonate door, Hyd Q/A, attachment control kit, dual direction bucket positioning, return to position and ride control
