Overview:
Agile Power for Tight Spaces

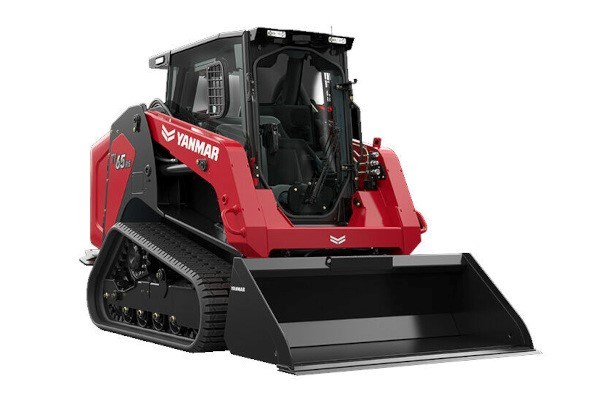

Introducing the TL65RS, Yanmar’s compact track loader that’s as rugged as they come yet meticulously designed. This machine unites brute force with rare finesse, offering a perfect balance for tackling a myriad of tasks. Under its hood roars a 67-horsepower Yanmar engine, ready to take on the toughest terrains and heaviest loads without breaking a sweat.
Weight: 8,575 lbs
Horsepower: 67 hp
ROC: 2,100 lbs
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Compact Power, Maximum Versatility
From maneuvering through cramped corners to lifting heavy loads with ease, the TL65RS doesn’t just get the job done, it excels at it. Its rugged exterior hints at the resilience under the hood, making it a dependable companion for every project, no matter the challenge. So, if you’re looking for a compact track loader that doesn’t compromise on power or performance, the TL65RS is your ultimate choice.
| Operating Specifications | |
| Loader Arms | Radial |
| Operating Weight (Open ROPS Base) | 8,575 lbs |
| Operating Weight (AWC Cab Base) | 8,915 lbs |
| Ground Pressure at Operating Weight | 5.7 psi |
| Rated Operating Capacity (35% of tipping load) | 2,100 lbs |
| Tipping Load | 6,000 lbs |
| Travel Speed, Maximum | 7.5 mph |
| Engine | |
| Type | Diesel 4-cylinder, Intercooled Turbo |
| Model | Yanmar 4TN86CHT |
| Gross Power Rating | 67 hp |
| Displacement | 2.1 L |
| Torque, Peak | 195 ft-lb |
| Cooling System | Belt-driven fan and anti-freeze filled radiator cooling system |
| Intake Air Cleaner | Dual-stage |
| Emission Controls | Meets all U.S. EPA Tier 4 final standards |
| Undercarriage | |
| Track Width | 12.6 in. |
| Length of Track on Ground | 60 in. |
| Ground Contact Area | 1,512 in.2 |
| Drive System | Two hydrostatic direct drive sprockets controlled by single joystick |
| Undercarriage Suspension | Two independent torsion axles per undercarriage |
| Auxiliary Hydraulic System | |
| Pump Capacity, Low/High | 21.4 / 26.7 gpm |
| Max System Pressure, Low / High | 3,480 / 3,771 psi |
| Controls | Intermittent via joystick button or continuous via console switch. |
| Couplers | Flat Faced Couplers: 1/2 in. |
| Cooling System | High efficiency side-by-side radiator and oil cooler |
| Electrical System | |
| Nominal Charge | 12 V |
| Battery | 800 CCA |
| Charging System | 80 amp alternator |
| Outlets | 1-12 V port inside operator station |
| Wiring | Pre-wired for all factory-available accessories |
| Standard Features | Block heater |
| Service Capacity | |
| Fuel Tank | 21.4 gal |
| Operator Station | |
| Cab | ROPS or All-Weather Cab with curved glass door |
| Seat | Mechanical suspension seat with 2-in. seat belt |
| Controls | Electronic joystick controls with ISO or H pattern settings, adjustable operator profiles and speeds |
| Engine Speed | Standard hand dial operation with foot pedal optional |
| 7-in. Color Machine Display | Fuel, tachometer, engine temp, hour meter, battery, trip meter, hydraulic temperature, water temperature, multiple languages |
| ROPS | ROPS: ISO 3471 Restraint-ISO 6683, SAE J2292, Cal OSHA 1596 |
| FOPS | ISO 3449 Level 1(level 2 optional), emergency roof exit |
| Illumination | 2 - Forward-facing LED lights 2 - Rear-facing LED lights |
| Standard Features | Mechanical suspension seat, fixed joystick controls, 7-in. color display, roof panel, rear window, cupholder, two speed, standard flow |
| Optional Features | All Weather Cab, heat & A/C, adjustable joystick controls, foot throttle, phone holder, radio with Bluetooth and USB, roof insulation, high flow, 3 in. seat belt, air ride seat, rotating magnetic beacon, LED side lights, backup camera, SmartAssist Remote telematics, 1/2 in. polycarbonate door, Hyd Q/A, attachment control kit, dual direction bucket positioning, return to position and ride control |
